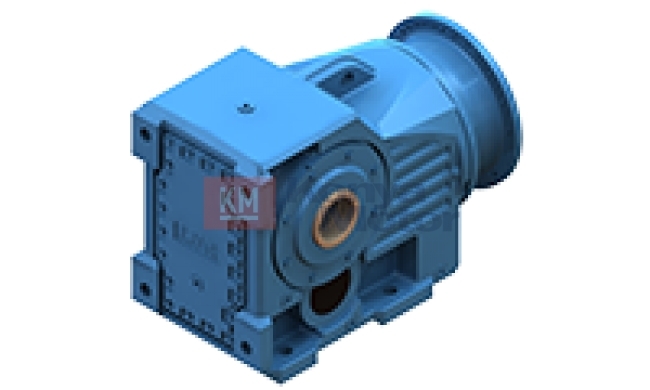

Designed to last, the helical bevel gear units IRK series are perfectly adapted for applications in need of high efficiency gearboxes. The gear design also offers a quiet operation of this unit. These advantages offer to you the guarantee of a noise free and low maintenance gearbox.

Product advantages:

• High efficiency
• Compact space saving design
• Quiet operation
• Long time lasting products, low maintenance
• Large range of ratio and high service factors



Type	Torque (max.)	Shaft Diameter
IRK-63	400 Nm	Ø 35
IRK-73	780 Nm	Ø 40
IRK-83	1330 Nm	Ø 50
IRK-93	2572 Nm	Ø 60
IRK-103	4010 Nm	Ø 70
IRK-123	8000 Nm	Ø 90
IRK-143	13000 Nm	Ø 110

Speed range
0,17 d,d…214 d/d

Applicable motor power
0,12 kW…90 Kw

Input options
Motorsuz Giriş Mili Motorsuz PAM Flanşlı (IEC) Motorlu PAM Flansli Motorlu ( IEC )



IRKM (Foot mounted, Motor) IRKFM (Flange Motor)	IRKPM (IEC (PAM) / Foot mounted, Motor) IRKFPM (IEC (PAM) /Flange Motor)	IRK (Foot mounted) IRKF (Flange)	IRKP (IEC (PAM) / Foot mounted) IRKFP (IEC (PAM) / Flange)
